Sliding, Lift & Slide and French Door
Sliding doors, lift and slide doors on heavier hardware, and French doors that open the whole width of an opening.
Sliding leaves
Two or more leaves that travel sideways on rollers and a rail, which keeps the floor of the room clear.
Lift and slide
Lift and slide hardware raises the leaf off its gasket as it is opened and lowers it again as it closes, which is what allows a very large glass leaf to be moved by hand.
French and folding
Hinged pairs or folding leaves, where the whole opening clears rather than half of it.

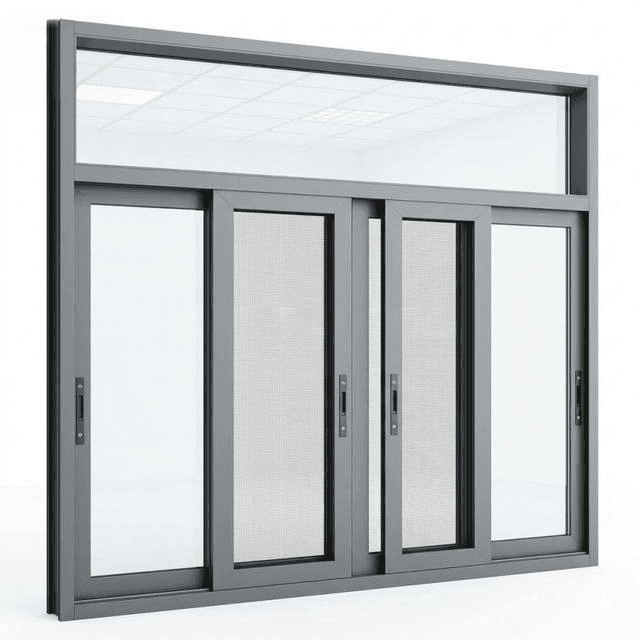

- Sliding action
- Two or more leaves sliding horizontally on a roller and rail system
- Lift and slide
- Lift and slide hardware, which carries very large glass leaves
- French and folding
- Hinged pairs or folding leaves, to clear the full width of the opening
- Track
- Exposed or concealed track, selected per project
- Glass
- Double-glazed as the common build-up, tempered available
- Wind load
- On high-rise and cyclone exposed elevations, profile and glass are selected against the calculated wind load
- Profile alloy
- Aluminium 6063-T5, the common architectural grade
- Hinges
- Exposed hinges as standard; concealed hinges available
- MOQ
- 2–50 m²
A sliding door is the standard answer to an opening that leads to a terrace, a garden or a balcony, because the leaves travel sideways along a rail and nothing swings into the room. Two or more leaves run on rollers, and the floor of the room stays clear.
Where the opening is very large the leaves get heavy, and that is where lift and slide hardware comes in. As the leaf is opened, the hardware raises it off the gasket; as it closes, it lowers the leaf back onto the gasket. Moving the leaf is therefore done on the rollers rather than against the seal, which is what makes a very large glass leaf possible to operate by hand. The seal itself is better than a plain sliding leaf, because the leaf settles onto the gasket rather than sliding across it.
French and folding doors do the opposite job: instead of stacking the leaves to one side, they clear the full width of the opening, which suits a room that opens onto a terrace or a garden where the whole elevation should be usable.
The track can be exposed or concealed, the glazing is normally double with tempered glass available, and on high-rise or cyclone exposed elevations the profile and the glass are selected against the calculated wind load rather than by size alone.
Tell us the opening size, the number of leaves, the opening type, the glass and the quantity, and we will quote the order.
