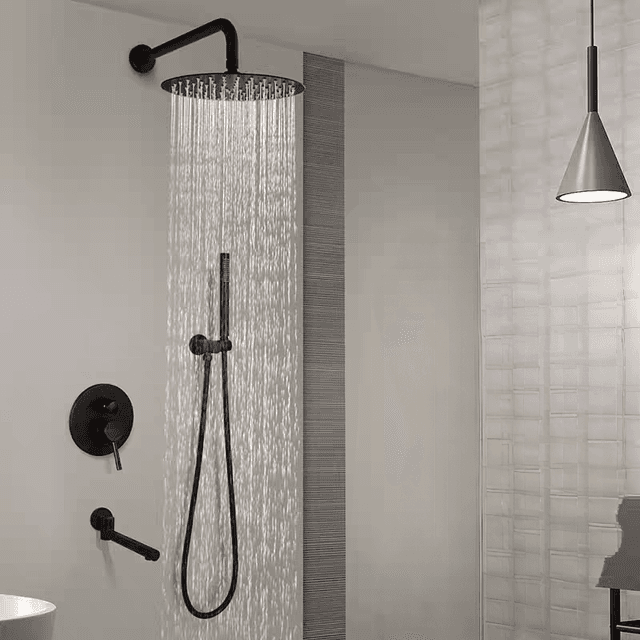

Concealed shower set with a wall-mounted face plate and rain head

Concealed Shower Set

The valve sits inside the wall and only the face plate shows, for a wall that reads as one clean surface. Common in hotels and high-end residential work.

  • Only the plate shows

    The valve body goes into the wall behind a face plate, so no pipework or handles sit proud of the tile.

  • Rough-in box supplied

    A brass valve body with a ceramic or thermostatic cartridge, mounted in a box set into the wall.

  • Two or three outlets

    Rain head, hand shower and, where specified, a bath spout.

Structure
Valve concealed in the wall, with a face plate, rain head and hand shower
Concealed valve
Brass body with a ceramic or thermostatic cartridge; a rough-in box is required
Outlets
2 or 3 (rain head, hand shower, bath spout)
Installation
Wall depth and rough-in position have to be allowed for. On retrofit projects the wall build-up is confirmed before production.
Thread
G1/2"
Finish
Polished chrome as standard; brushed nickel, matte black, brushed gold or rose gold, gunmetal
Certification
CE as standard; cUPC for North America and Watermark for Australia and New Zealand available to order
MOQ
10–100 pcs
Request a quote

A concealed shower set puts the valve inside the wall and leaves only a face plate on the surface. Nothing stands proud of the tile, no riser and no exposed pipework, which is why the arrangement is common in hotels and in bathrooms where the wall is meant to read as one clean plane.

The valve body is brass with a ceramic or thermostatic cartridge, and it mounts in a rough-in box set into the wall. Because the working parts are inside, the wall has to be built for it: the depth, the position of the box and the runs to the rain head and hand shower are all fixed before the wall is closed. On retrofit projects we confirm the wall build-up first, since a wall without the box in it cannot simply be adapted later.

The set can be specified with two or three outlets. Tell us the wall construction, the outlet positions and the finish, and whether the plate has to suit an existing cut-out, and we will set out the rough-in.
