Multi-Function Shower System
A large rain head with body jets, hand shower and waterfall outlet, built as a shower system rather than a single fitting.
Large rain heads
12 in (305 mm) and 16 in (406 mm), with panel versions at 16 × 24 in and 12 × 36 in.
Body jets
Two or four side jets, on thermostatic control.
Up to four outlets
Rain head, hand shower, waterfall and body jets or a bath spout in place of one.
- Rain head sizes
- 12 in (305 mm) and 16 in (406 mm); panel versions 16 × 24 in and 12 × 36 in
- Outlets
- 4 (rain head, hand shower, waterfall, body jets or bath spout)
- Body jets
- 2 or 4 side jets
- Temperature control
- Thermostatic cartridge; high-flow valves on some models
- Installation
- Exposed or ceiling mounted. Ceiling load has to be confirmed for large panels.
- Additional functions
- LED colour light, Bluetooth audio, digital display
- Thread
- G1/2"
- Flow rate
- 2.0 gpm at 60 psi as a common reference; 1.8 gpm for water-saving models
- MOQ
- 1–2 sets

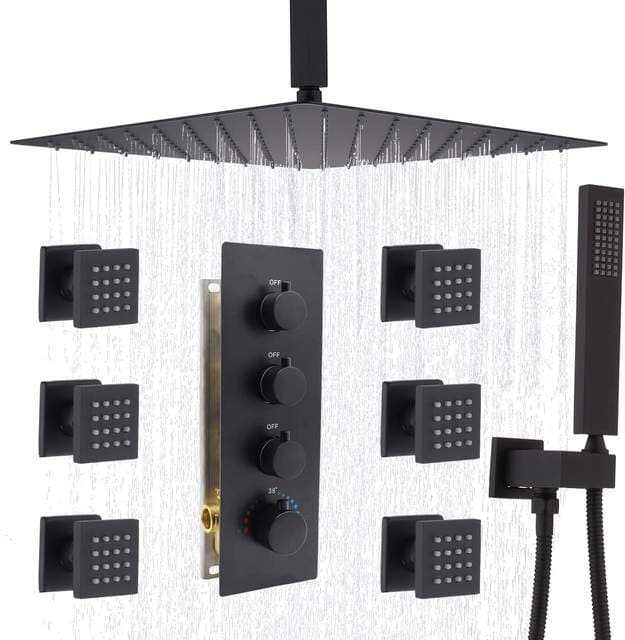

A multi-function shower system is built around a large rain head, with the rest of the fittings arranged around it. Heads run at 12 in (305 mm) and 16 in (406 mm), and panel versions go up to 16 × 24 in and 12 × 36 in, which turns the shower from a fitting into the main feature of the bathroom.
Below the head the system can carry four outlets: the rain head, a hand shower, a waterfall outlet and body jets, with two or four side jets set into the wall. Water temperature is held by a thermostatic cartridge, and because the outlets add up, the valve is usually specified at a higher flow than a two-outlet set.
Large panels bring their own conditions. A 16 × 24 in head carries a considerable weight of water and needs the ceiling or the wall to be able to take it, so the mounting is confirmed against the build before the set is made. Some models add LED colour light, Bluetooth audio and a digital display, which brings in a power supply and waterproofing for the wet zone.
Tell us the head size, the outlet list and how the set will be mounted, and we will confirm the specification.
