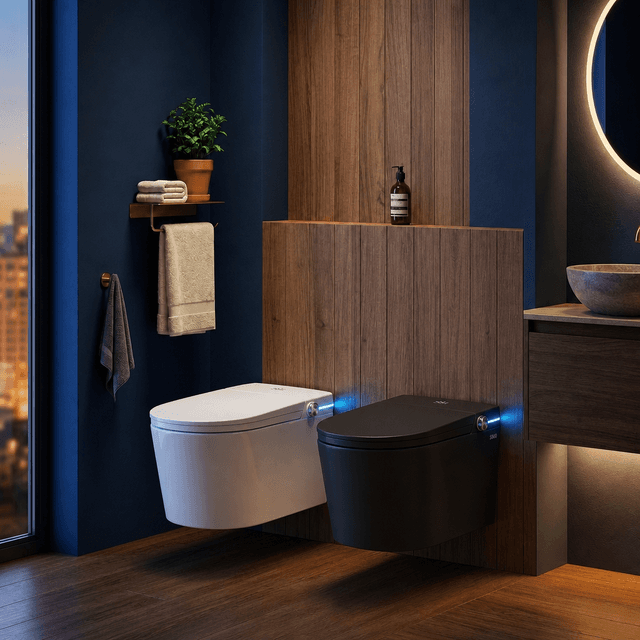

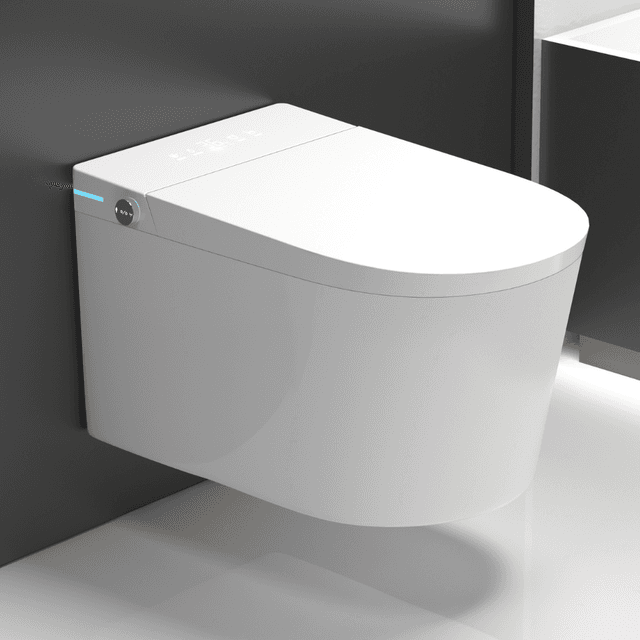

Wall-hung smart toilet with a concealed cistern and an integrated electronic control panel

Wall-hung Smart Toilet

A wall-hung bowl with the cistern concealed in the wall and the electronic controls built into the unit. Power supply and cistern position are confirmed against the drawing before production.

  • Wall-hung and electronic at once

    The bowl hangs on a frame in the wall and the controls sit in the body of the unit, so the floor stays clear.

  • Cistern concealed in the wall

    Only the bowl and the control panel are visible; drainage is P-trap because the outlet runs into the wall.

  • Set-out fixed before production

    Power supply and cistern position are confirmed against the drawing, since neither can be moved once the wall is closed.

Structure
Wall-hung bowl + concealed cistern in the wall + electronic module
Standard functions
Foot-sensor flush, automatic flush, heated seat, warm-water washing, remote control
Drainage
P-trap (wall outlet) as standard
Electrical
Power supply and cistern position confirmed against the drawing before installation; 110 V North America / 220 V other markets
Typical projects
Premium residential, hotel and apartment refurbishment
Bowl shape
Round as standard; elongated (about 18.5 in) available
Material
Vitreous china; antibacterial glaze available
Certification
CE as standard; cUPC / UPC for North America, Watermark for Australia and New Zealand and ADA available to order
MOQ
1–20 pcs
Request a quote

A wall-hung smart toilet brings the two formats together: the bowl hangs on a frame inside the wall, the cistern is concealed behind the finished surface, and the electronic controls sit in the body of the unit itself. Functions are foot-sensor flush, automatic flush, a heated seat, warm-water washing and a remote control.

Drainage is P-trap as standard, since the outlet runs into the wall rather than down through the floor. Both the power supply and the position of the concealed cistern have to be confirmed against the drawing before installation, because neither can be repositioned afterwards without opening the wall. Certification is Watermark, CE or cUPC depending on the destination market.
